Prius DynaFlow Mattress Systems feature 3-1 Alternating Pressure, True Low Air Loss and Pulsation therapy to provide pressure prevention and treatment for individuals who are considered medium to high risk of developing pressure sores. DynaFlow mattresses are also designed to treat patients who have an existing Stage 1, 2, 3 and 4 pressure ulcers. This highly capable mattress system provides constant low pressure by redistributing the patient's pressure over a greater area than a standard mattress. The system includes a Fowler Mode that monitors the angle of the bed frame to auto adjust air flow underneath the patient's buttocks area to prevent bottoming out.

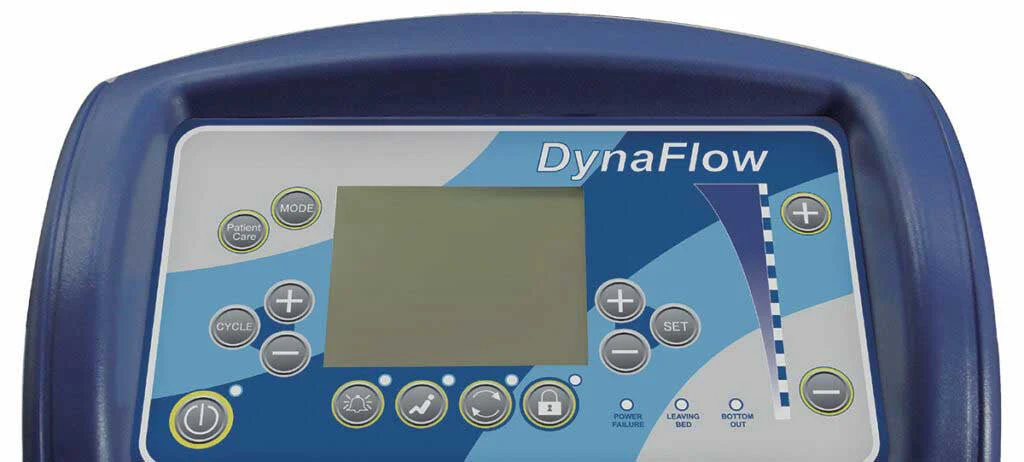

The DynaFlow pump automatically sets optimal pressure based on patient’s weight, height and position. Pulsation Mode's 60-second therapy simulates a massage to assist in maximizing a patients comfort and increases capillary blood flow to the skin. Auto-Set feature utilizes BMI (Body Mass Index). Input of height and weight continually adjusts optimal mattress pressure. Equip with 2” convoluted foam base that provides additional support during power failure situation. The PU cell design provides easy cleaning and minimizing the growth of bacteria. Available in sizes: 36" x 80" x 14" (PHR-DYNA36); 42" X 80" X 14" (PHR-DYNA42); and 48" X 80" X 14" (PHR-DYNA48)

Shipping/Delivery*

Orders placed by 1:00 PM ET / 12:00 PM CT typically ship the same day, Mon-Fri. Orders placed after those times typically ship the next business day. Transit time is generally 2 to 3 business days.

3-1 Alternating Pressure Explained

3-1 Alternating Pressure (AP) inflates and deflates the individual mattress air bladders in cycles to provide pressure relief in a 3:1 ratio. As a result, the mattress surface always supports 2/3 of the body's weight during AP mode—leading to a smoother transition between bladder cycle times, and a more comfortable surface that supports 2/3 of the body's weight as opposed to older "every-other-cell" (2:1) alternating pressure systems that supports only 50% of the body when in AP mode.

Features

• 3-1 Alternation therapy supports 2/3 of the body's weight during AP mode therapy
• True Low Air Loss to help keep the mattress surface cool and free of humidity to help prevent skin breakdown
• Pulsation therapy provides 60-seconds of pulsation to stimulate capillary blood flow to the skin
• Auto Set feature utilizes BMI (Body Mass index) to set the optimal pressure based on the patient’s height and weight
• Patient Care mode max inflates the mattress to assist medical staff with patient bedside treatment and help facilitate patient ingress/egress
• Easy to clean Nylon PU cell design helps minimize the proliferation of bacteria
• Power Out Support is provided by a 2” convoluted foam base underneath the air cells to support the user during a power failure situation
• Fowler Mode that automatically adjusts air pressure in the buttocks area to increase air flow when needed when the head section is articulated
• Low Slip Nylon under mattress base cover to reduce shearing and friction between mattress and bed frame
• Cable Management System on bottom cover to keep cords out the way and free of tripping hazards
• CPR Quick Release system deflates the system within 20 seconds in the event of emergency
• Warranty 1 Year on Power Unit; 1 Year on Mattress and Cover
• Weight Capacity of 600 lbs.

Specifications | DynaFlow Mattress System

Pump Airflow	1200 LPM (liters per minute)
Pump Type	Blower
Cell Number	18 Cells / Bladders
Cycle Times	3 to 95 minutes
True Low Air Loss	Yes
Pulsation Therapy	Yes
Pump Alarms	Audio / Visual
Pump Dimensions	12.3"W x 6.7"D x 4.9"H
Pump Weight	14.9 lbs.
Mattress Dimensions	36"W x 80"L x 14"H (PHR-DYNA36) 42"W x 80"L x 14"H (PHR-DYNA42) 48"W x 80"L x 14"H (PHR-DYNA48)
Mattress Weight	39.6 lbs.
Pump Voltage	110-120 volts; 60 Hz
Pump Sound Level	55 dB
Mattress Material	Fluid Resistant Nylon, Washable
Weight Capacity	600 lbs (36"W PHR-DYNA36) 800 lbs (42"W PHR-DYNA42) 800 lbs (48"W PHR-DYNA48)

Click to >> Download the Prius Dynaflow Mattress System Brochure

Click to >> Download the Prius Dynaflow Mattress System User Manual
