The Lumex Deluxe Clinical Care with Drop Arms Recliner FR566DG sets a new standard of comfort for the patient and ease of use for the caregiver. All Lumex Clinical Care Recliners have built-in durability and versatility to meet the demanding needs of clinical and critical care use. Lumex Clinical Care Recliners have been designed with input from both patients and caregivers to provide the ultimate in safety, comfort and convenience. All color options are included in price.

Business or Facility Looking for Multiple Units?

NewLeaf offers Special Pricing and Delivery/Installation Options for businesses ordering 3 to 50 or more units. Call NewLeaf's Professional Accounts Team at 888.739.4330 to request a custom quote, or click > to message your request.

Features

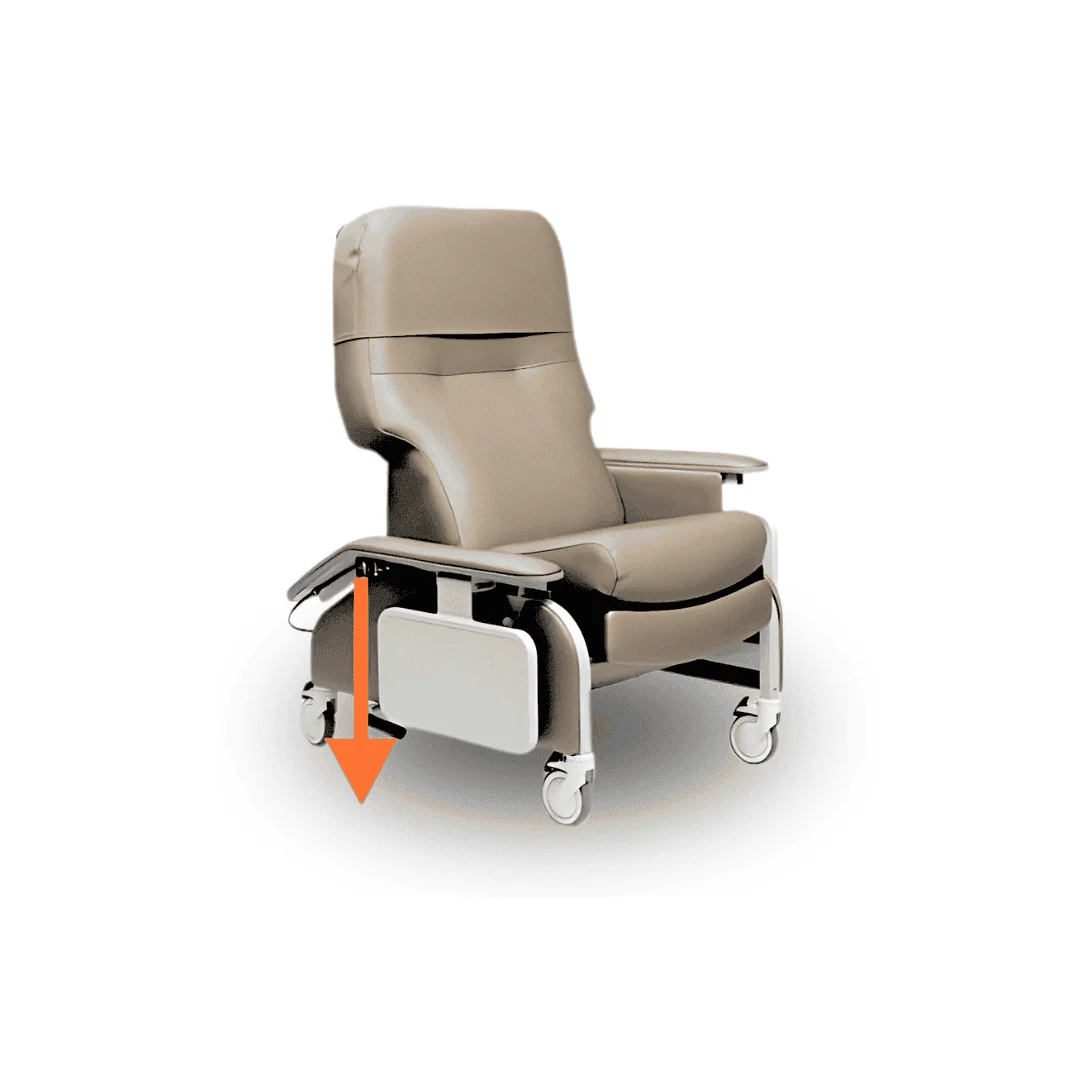

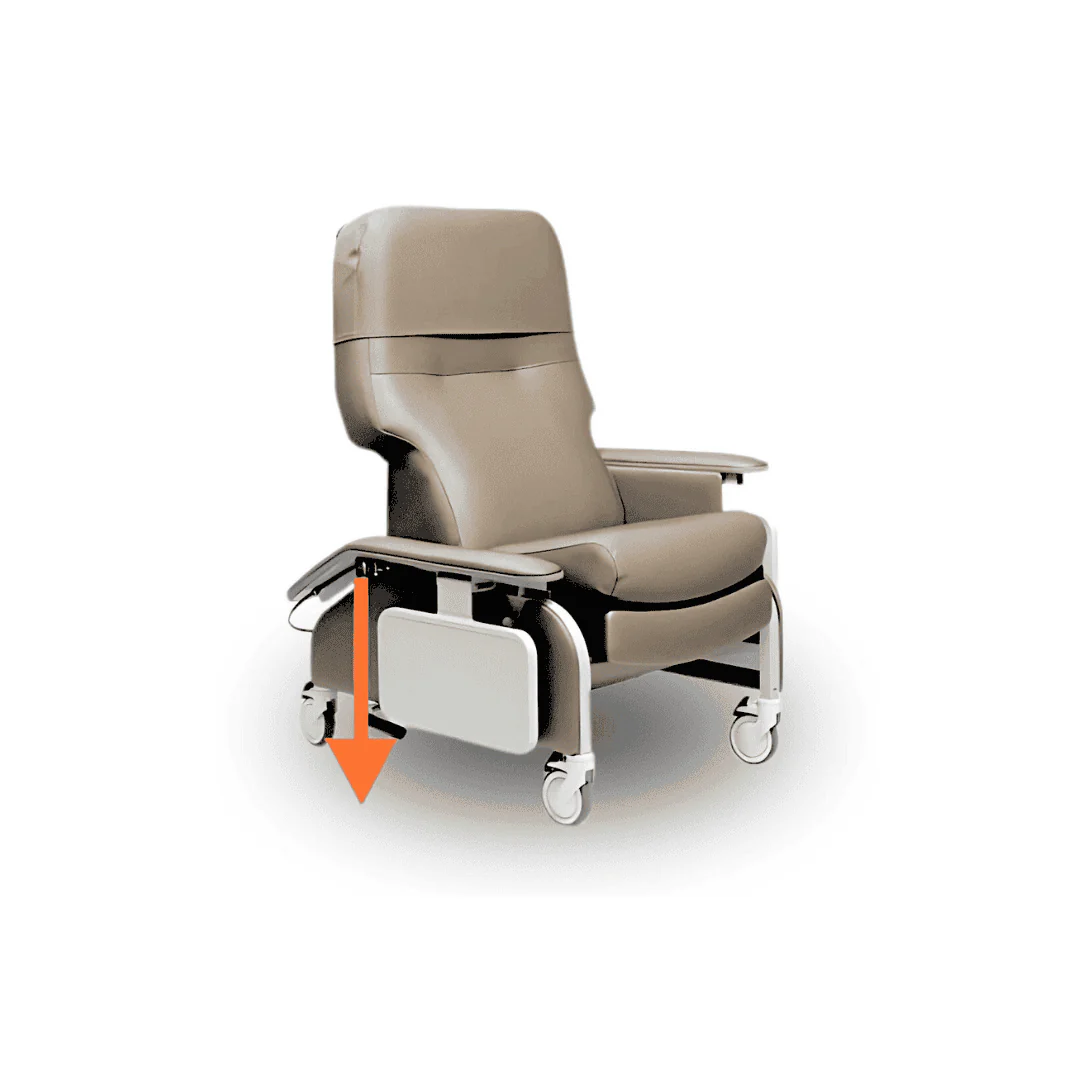

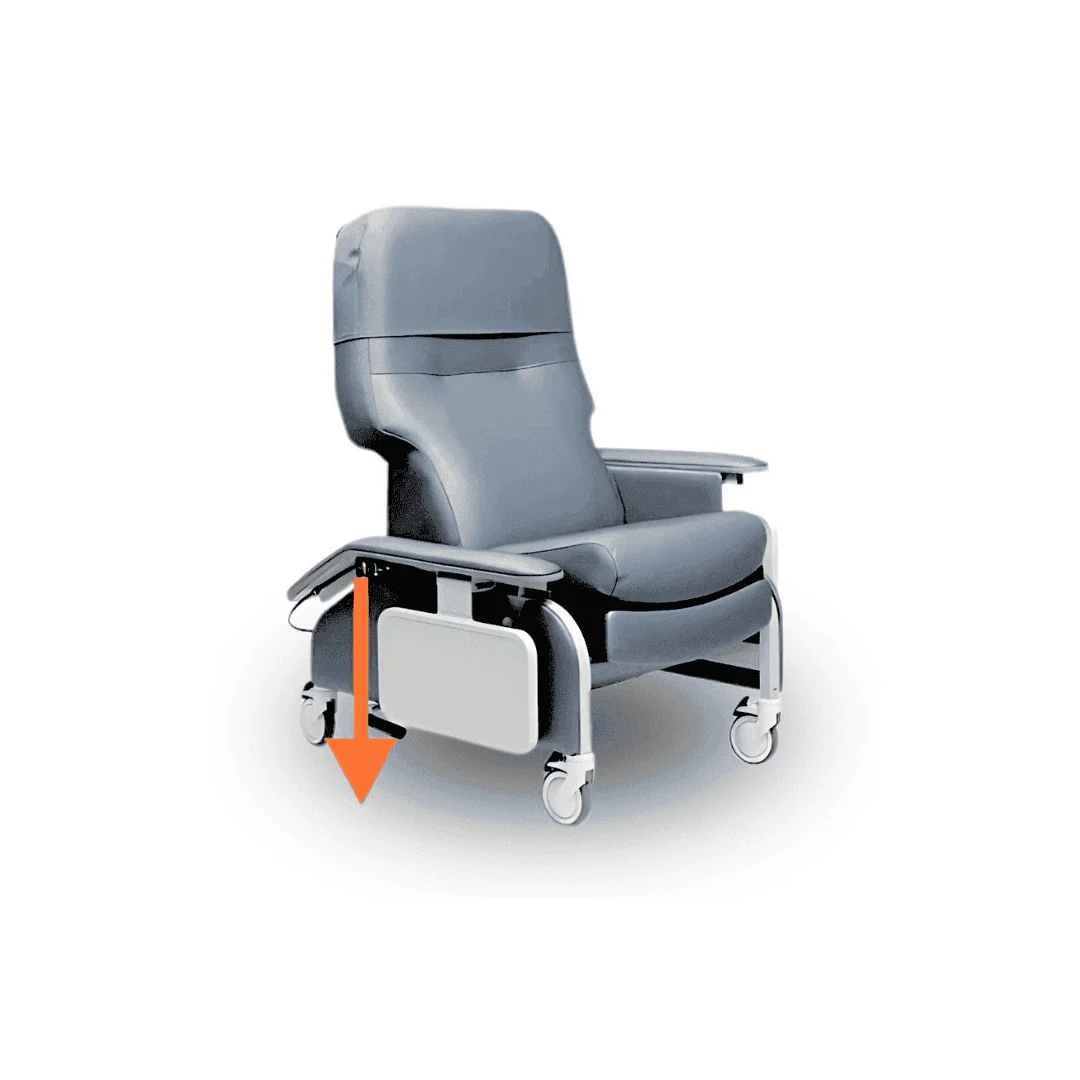

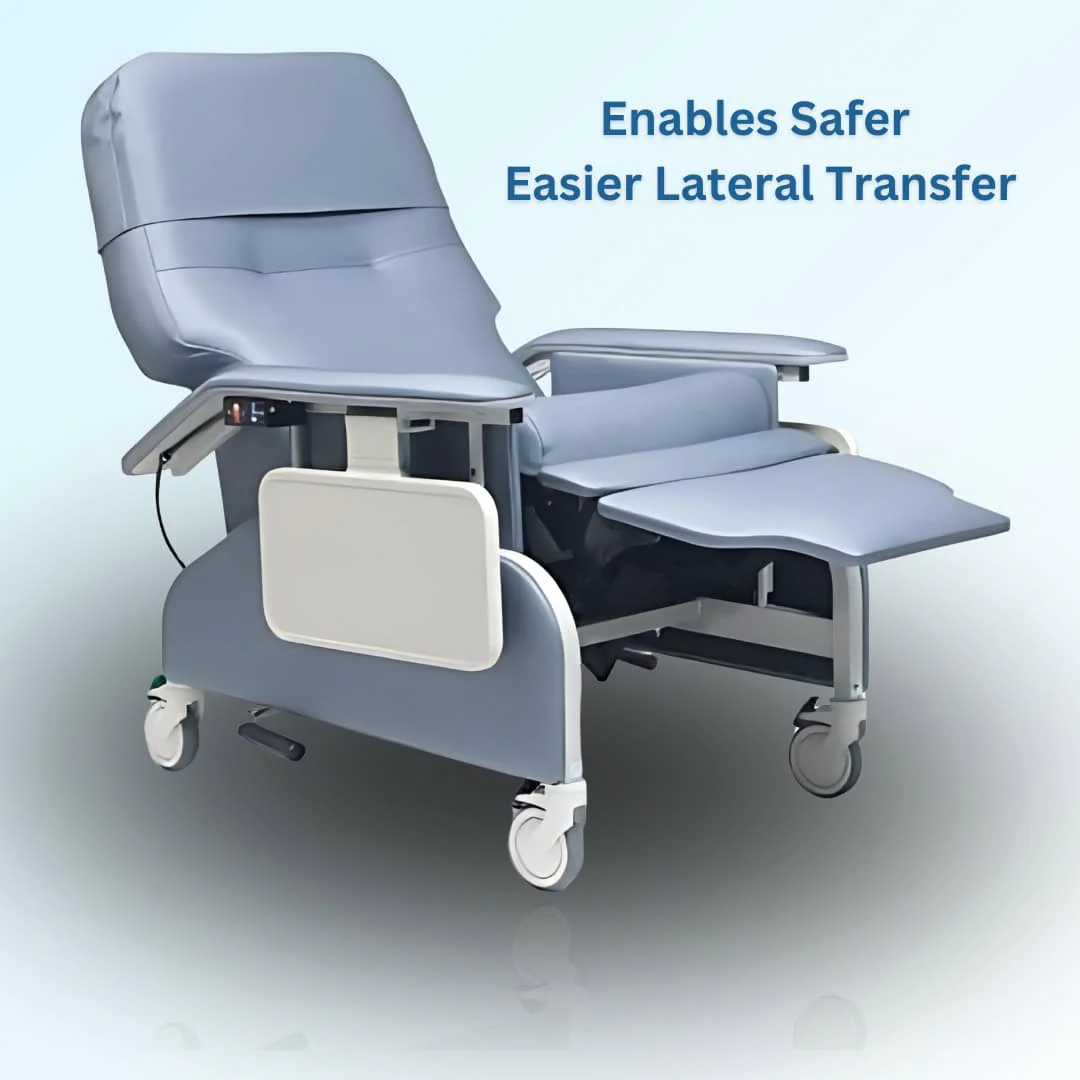

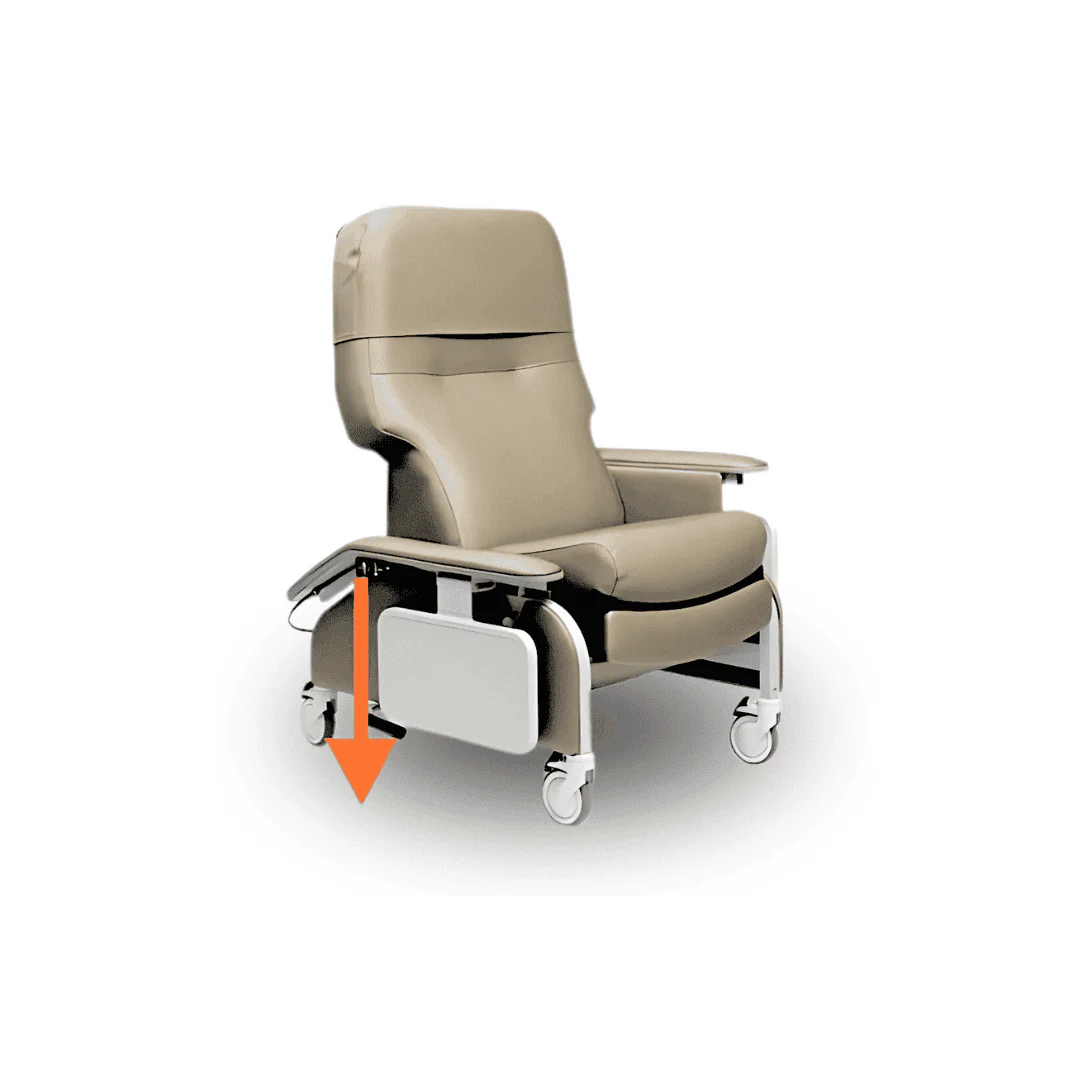

• Self-storing, easy to actuate dual drop-arms are simple for the caregiver to activate and enables a safer, easier lateral transfer

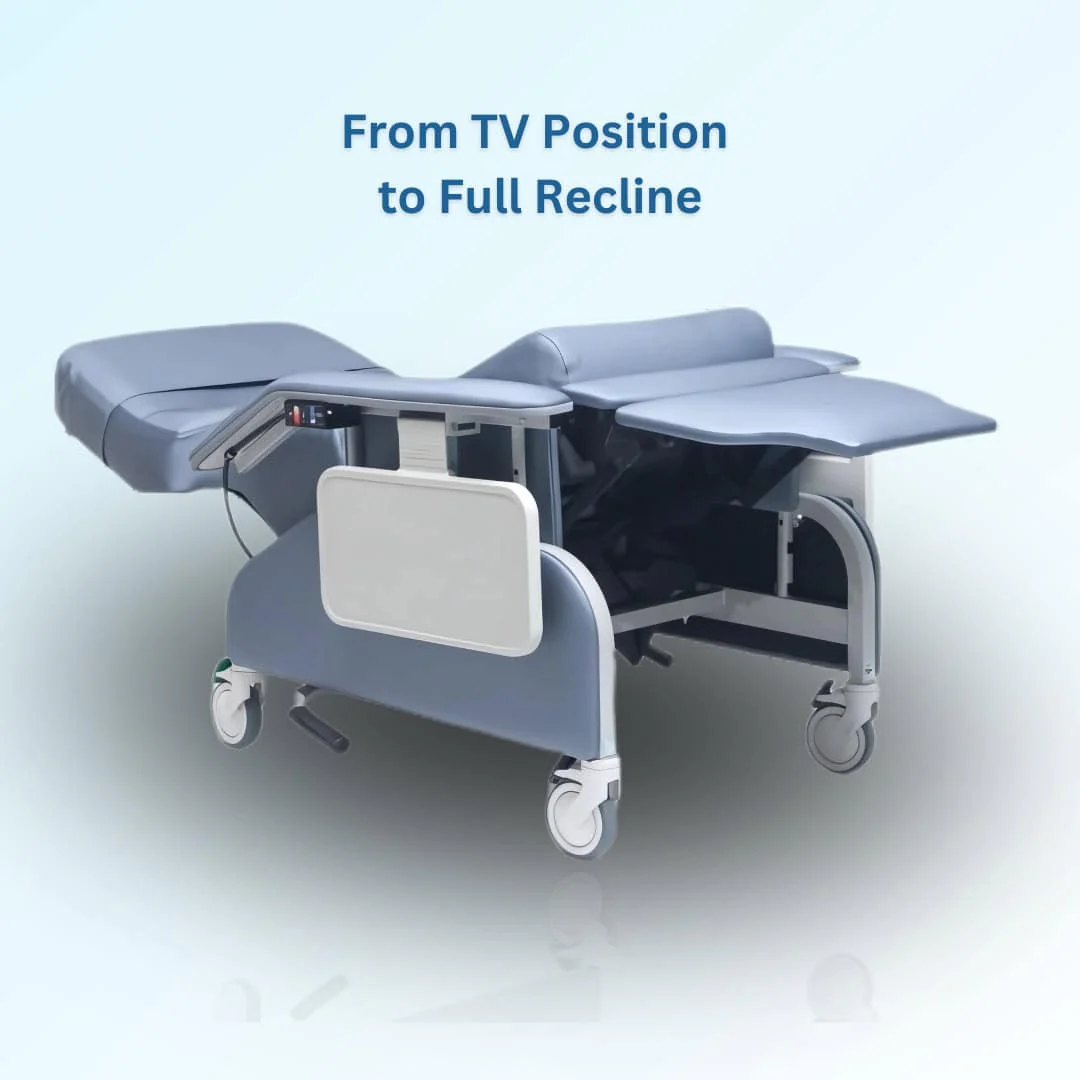

• Unique patent pending recline mechanism enables the occupant to position the back from TV position to full recline
• Wide, contoured seat and back, along with an integrated footrest, provide an enhanced level of comfort
• Wall saver armrest caps increase durability of the armrests and protect walls from marring
• Higher floor to back height enables the caregiver to raise the occupant up with less effort, reducing the chance for a back injury

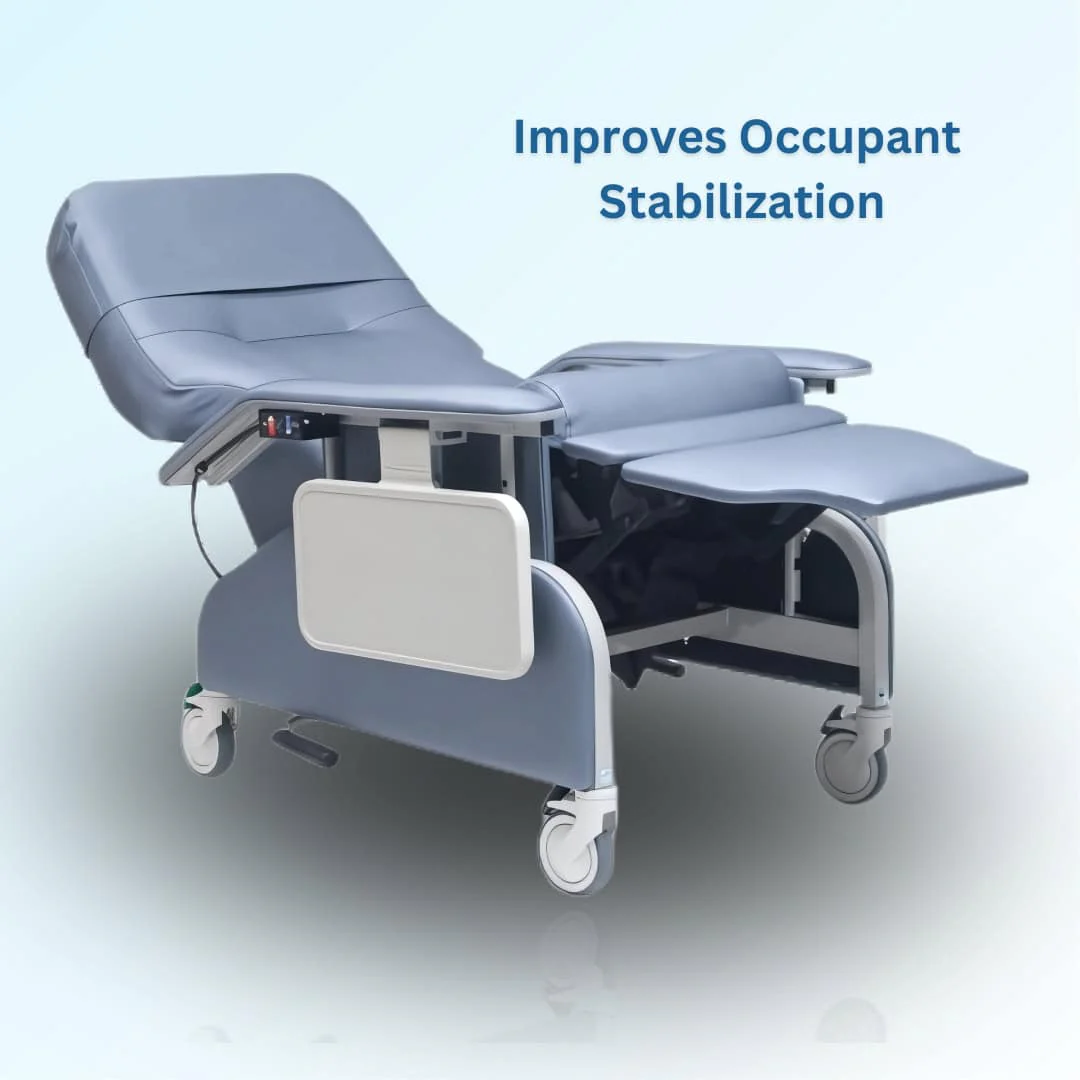

• Extra deep Trendelenburg position's steeper angle improves occupant stabilization
• Easy-to-achieve Trendelenburg position can be actuated from either side of the recliner by a convenient foot pedal
• Directional wheel lock on right rear caster reduces crabbing of recliner and enables the chair to be moved down hallways with less effort
• Durable, high-impact side tables sit flush with chair arm to conveniently hold prep materials. Easy to actuate by caregiver
• Upholstered inside panels
• Easy-to-remove side panels enable easy access to recliner for cleaning and maintenance
• All colors meet Fire Retardant standards version CA133 required for sales to public occupancies

Functionality

• Class: Clinical and Infusion Chair
• Positions: 4 Position; Back Angle Upright (120-degrees); Back Angle Fully Reclined (150-degrees)
• Trendelenburg: Yes; Can only be performed by an attendant
• Drop Arms: Yes
• Occupant Controls: This item can be reclined by user
• Caregiver Controls: Position Lock function allows only the caregiver to exclusively secure the chair positions
• Casters: Swivel Locking 5" casters (3) with rear Swivel Directional/Locking 5" Caster that enables easy tracking while moving forward
• Table Configuration: Dual Side Tables
• Applications: Dialysis, Oncology & Infusion, Orthopedics, Same-day Surgery, Long-Term Care

Shipping/Delivery*

This is a made-to-order item with a build time of approximately 6 weeks. Orders cannot be canceled once they have entered the production phase. Transit time is generally 4 to 6 business days once your order ships. Curbside Delivery orders are delivered to your door, but not brought inside or removed from the box. The freight company will call you to arrange for a convenient delivery date and time. Some assembly of the chair back into the base and accessories required, typically 20 minutes. Delivery & Assembly option may add 3 to 4 days to your expected delivery time. *While the bulk of shipping costs are covered, a $49 lift gate fee will be added during checkout under the line item "Shipping Exception." Note: If your delivery will be made to a Freight Dock, please notify NewLeaf via the "Order Comments" field during checkout, and a $49 credit will be applied to your payment method. You must notify NewLeaf within 2 hours of order placement to qualify for this credit.

Heat and Massage (optional)

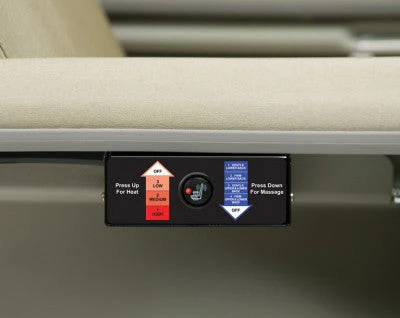

You want your patients to be as comfortable as possible before, during, and after treatment. One of the most common complaints from patients is that they feel cold during treatment. This fabulous and easy-to-use and easy to access single switch system independently controls both the heat and massage feature. Two heating elements, one in the seat and one in the back, provide gentle heat for the patient. Three Heat Settings allow occupants to control just how much warmth they need. Automatic shut-off triggers after one hour of continuous use at the same level. The massage function offers a four massage settings that control the intensity and location of the massage to ensure that the occupant receives the most appropriate level of massage. Automatic shut-off triggers after fifteen minutes of continuous use at the same level.

Specifications | Lumex Deluxe Clinical Recliner w/ Drop Arms FR566DG

Weight	130 Lbs.
Height	51.5"
Width	33" / 53" Dual Tables Up
Seat Height from Floor	22"
Seat Width	20.5"
Seat Depth	19"
Seat Back Height	30"
Arm Height from Floor / Seat	28" / 8"
Footprint Upright Length	38"
Footprint Recline Length	76"
Product Weight	131 Lbs.
Weight Capacity	350 Lbs.
Warranty	Welded Frame—10 Years Upholstery—Limited 1 Year All Other Components—3 Years Casters—1 Year
