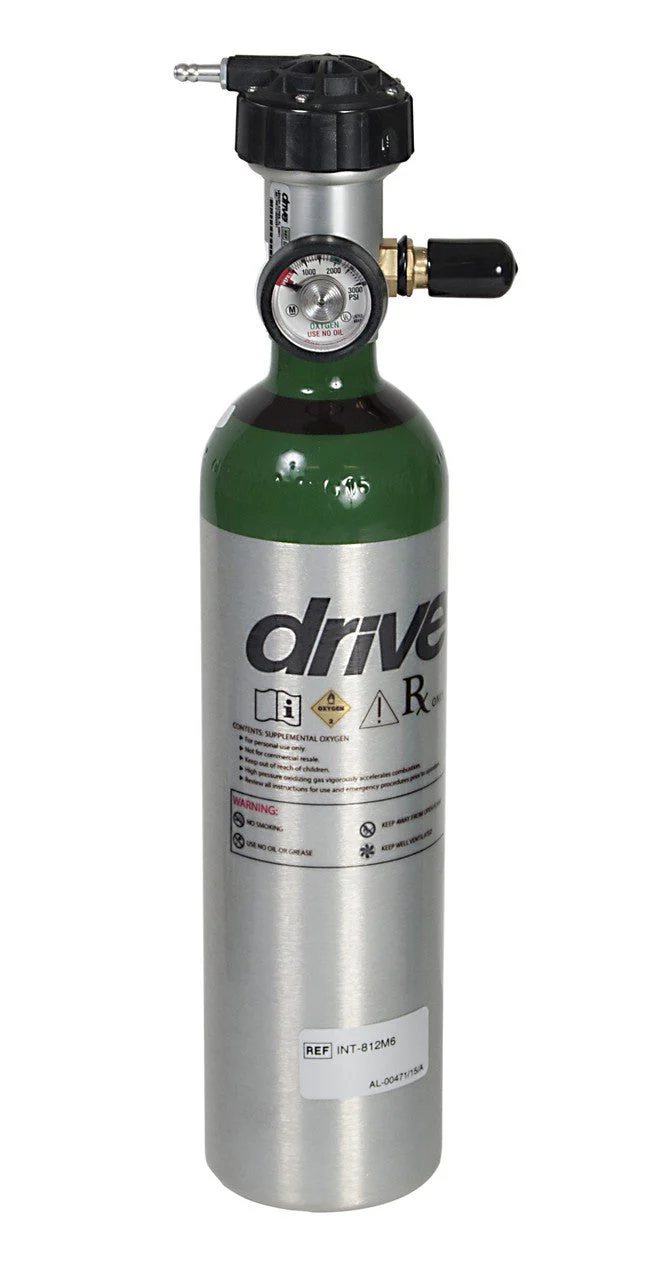

Transfill Cylinder with Integrated Bonsai Velocity Conserver for Drive's PureFill Oxygen System
Drive Medical's Integrated Bonsai Velocity Cylinder offers all of the benefits of the Bonsai Velocity Pneumatic Conserver integrated into a 2000 PSI aluminum oxygen cylinder with a transfill valve. Compatible with multiple transfill units and available in multiple sizes.
Features
- Eliminates need to install conserver on cylinder
- Delivers a uniform oxygen pulse at increments: 1, 2, 3, 4, 5 and 6
- Two continuous flow settings preset at 2 LPM and 4 LPM
- Delivers up to a 6:1 savings ratio from 14-40 breaths per minute
- Senses a breath and delivers oxygen in the first half of the inspiratory cycle
- Light weight and quiet operation
- Easy to operate single selector knob
- Compact design fits easily in virtually any oxygen carry bag
Specifications
| Length & Diameter | Diameter | Weight | Volume | |
| INT-812M6: | 15.3" | 3.2" | 2.8 lbs | 164 L |
| INT-812ML6: | 11.4" | 4.4" | 3.2 lbs | 171 L |
| INT-812M9: | 14.0" | 4.4" | 4.4 lbs | 246 L |
| Estimated Cylinder Duration (Hours based on 20 BPM) | ||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | CF 2 LPM | CF 4 LPM | |
| INT-812M6: | 10.5 | 6.2 | 4.3 | 3.5 | 3.0 | 2.6 | 1.4 | 0.7 |
| INT-812ML6: | 11.0 | 6.5 | 4.5 | 3.7 | 3.1 | 2.7 | 1.4 | 0.7 |
| INT-812M9: | 15.8 | 9.3 | 6.4 | 5.3 | 4.5 | 3.9 | 2.1 | 1.1 |
