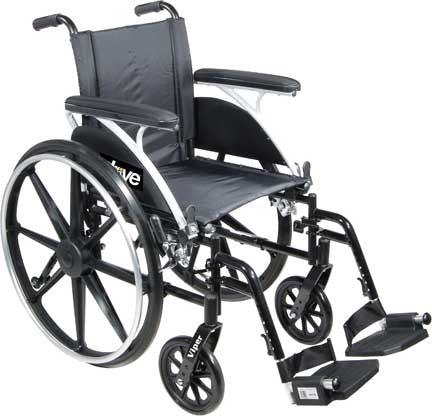

The Drive Medical Viper is a versatile wheelchair right out of the box and it is easier to propel and transport than an average weight wheelchair. The Viper comes standard with adjustable padded arms, multiple seat to floor height positions, anti-tippers with flip-up wheels which never have to be removed and push to lock wheel locks. The back is height adjustable to provide added patient comfort. The carbon steel frame is high strength while remaining lightweight. The wheelchair upholstery is made of durable nylon for long lasting comfort and cleanliness. These comfort options make the Viper from Drive Medical an ideal wheelchair for anybody that needs to be in a wheelchair for extended periods of time. This wheelchair is available with various arm styles, seat widths, and swing away foot rests or elevating legrests.

Shipping/Delivery*

Instock! Orders will be shipped in the order they were placed. Freight transit time is generally 3 to 5 business days.

Features

• Viper weighs 32 lbs (Excluding front rigging)
• Easier to propel and transport
• Frame style eliminates seat guides and allows for custom backs and accessories
• Back height adjustable from 18" - 20"
• Carbon steel black powder coated frame double coated for an attractive, chip-proof, maintainable finish
• Durable and comfortable nylon upholstery
• Composite mag-style wheels with aluminum hand rims are lightweight and maintenance free
• Urethane rear tires and casters offer superior performance, smoother ride and are lightweight
• 8" front casters have 3 height adjustments
• Nylon padded armrests provide added patient comfort
• Flip-back arms, allow for easy transfer
• Composite steel lined front receiver is angled so the arm will lock into place every time
• The front mounted release lever can be flipped up or down depending on the patients needs
• Precision sealed wheel bearings in front and rear ensure long lasting performance and reliability
• Dual axle provides easy transition of seat height to hemi level
• Comes with swing-away footrests or elevating legrests with tool-free adjustable length riggings
• Composite footplates with heel loops are durable and lightweight
• Comes standard with flip up anti tippers
• Comes with push to lock wheel locks

Specifications

Color	Chrome
Seat Width	12"or 14"
Seat Depth	12" (12" Seat); 14" (14" Seat)
Seat-to-Floor Height	17", 18" or 19" (Adjustable)
Back Height	16" -18" (Adjustable)
Seat-to-Armrest Height	8"
Armrest Length	10"(Desk Arms) or 14" (Full Arms)
Armrest-to-Floor Height	27.5"
Overall Height	32"
Overall Width	20"(12" Seat), 22.5"(14" Seat))
Width Closed	12"
Length with Riggings	43"
Rear Wheels	24" x 1"
Front Casters	8" x 1"
Brakes	Push-to-Lock
Product Weight without Riggings	30 Lbs. (12" Seat); 31 Lbs. (14"Seat)
Weight Capacity	250 Lbs.
Warranty	Limited Lifetime

Model Numbers: l412dda-elr, l412dda-sf, l414dda-elr, l414dda-sf, l416dfa-elr, l416dfa-sf, l418adda-sf, l418dda-sf, l418dfa-sf, l420dda-elr, l420dfa-elr, l420dfa-sf
