Battery Charger Replacement Lumex LF1050, LF1090, LF2020 & LF2090 Lift Models

Battery Charger Replacement Lumex LF1050, LF1090, LF2020 & LF2090 Lift Models

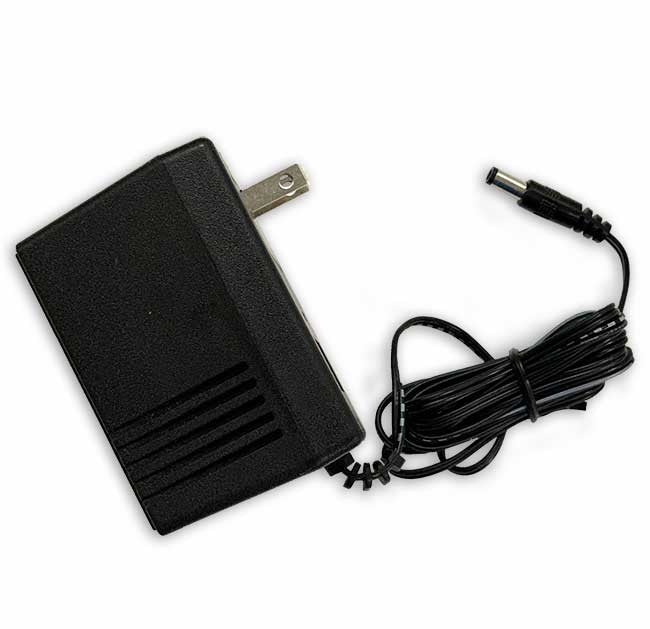

This part is a replacement charger for Lumex floor lift models LF1050, LF1090, LF2020 and LF2090 Models. This is a new manufacturer authorized part and carries a One (1) year limited. ** PLEASE NOTE: DPL650ADP is the single pin style. If your lift uses the older 5 pin style, you must also order #DPL650ADP-CABLE adapter.**

Charging Your Lumex Lift Batteries

  1. Ensure the control box power switch is ON (i.e., the red button is up).

  2. Insert the charger plug into the battery box charging socket (the top slot).

  3. Insert the other charger plug into the power supply.

  4. All LED indicator lights should be ON during charging.

  5. When one green LED indicator light illuminates, the batteries require approximately two to three hours to be fully charged.

  6. When only the red LED indicator light illuminates, the batteries require approximately seven to nine hours to be fully charged.

  7. Unplug the charger FIRST before using the lift.

  8. Replace the batteries when frequent charging is required.

Info: The lift will not operate while the batteries are charging. The lift will not operate while the red reset button is down.

NOTICES

  • Initially charge new batteries for 12 hours
  • Subsequent charges should not exceed 10 hours
  • It is recommended that you do not allow the battery indicator to drop below the last green indicator light
  • A battery should provide 1,200 to 1,300 charge cycles over its life when you charge as needed. Leaving batteries plugged in and charging when the battery capacity does not require charging will prematurely shorten the life of the battery
$55.30

Original: $158.00

-65%
Battery Charger Replacement Lumex LF1050, LF1090, LF2020 & LF2090 Lift Models—

$158.00

$55.30

Product Information

Shipping & Returns

Description

This part is a replacement charger for Lumex floor lift models LF1050, LF1090, LF2020 and LF2090 Models. This is a new manufacturer authorized part and carries a One (1) year limited. ** PLEASE NOTE: DPL650ADP is the single pin style. If your lift uses the older 5 pin style, you must also order #DPL650ADP-CABLE adapter.**

Charging Your Lumex Lift Batteries

  1. Ensure the control box power switch is ON (i.e., the red button is up).

  2. Insert the charger plug into the battery box charging socket (the top slot).

  3. Insert the other charger plug into the power supply.

  4. All LED indicator lights should be ON during charging.

  5. When one green LED indicator light illuminates, the batteries require approximately two to three hours to be fully charged.

  6. When only the red LED indicator light illuminates, the batteries require approximately seven to nine hours to be fully charged.

  7. Unplug the charger FIRST before using the lift.

  8. Replace the batteries when frequent charging is required.

Info: The lift will not operate while the batteries are charging. The lift will not operate while the red reset button is down.

NOTICES

  • Initially charge new batteries for 12 hours
  • Subsequent charges should not exceed 10 hours
  • It is recommended that you do not allow the battery indicator to drop below the last green indicator light
  • A battery should provide 1,200 to 1,300 charge cycles over its life when you charge as needed. Leaving batteries plugged in and charging when the battery capacity does not require charging will prematurely shorten the life of the battery
